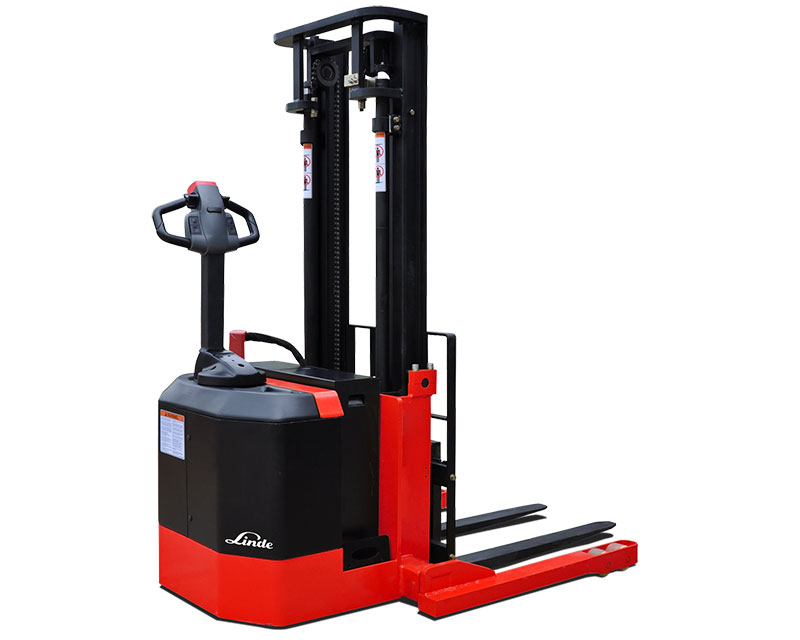

Electric PALLET STACKERS
More lift than a pallet jack. More flexibility than a forklift.
Linde Pallet Stackers give warehouse teams a practical way to lift, move and position palletized loads when a full-size forklift is more than the application requires. Built for compact spaces, elevated pallet placement and efficient load handling, pallet stackers help bridge the gap between a pallet jack and a forklift by combining maneuverability with vertical lift capability.
Ideal for narrow aisles, staging areas, loading zones, production lines and retail storage environments, Linde Pallet Stackers support safer, more controlled pallet handling in space-constrained operations. Apex can help you evaluate capacity, lift height, battery options, ergonomics and application fit to select the right stacker for your facility.
EWS10 EWS12 EWS14HD
WALKIE-STRADDLE TRUCK
Power Source: 24v. AC Electric, Lead-acid Battery
Capacity: 2000/2500/3000 lb.
(900/1130/1350 kg)
Versatile and cost-effective trucks for moving pallets with efficiency and maneuverability. The walkie-straddle truck stands up to the most challenging applications. Smooth-operating 24-volt AC motor provides proportional power and stability in both lift and travel. These walkies carry up to 3,000 lb. and offer up to 185 in. (15 ft.) of load lift.
Features
- Sealed 24 v. AC motors
- High visibility Tru-view masts
- Self-contained, integral hydraulic system
- Outriggers available in variable widths
- Advance torque range for incline travel
ML14ASX POWER STEERING WALKIE REACH TRUCK
Power Source: 24 v. AC Electric, Lead-acid Battery
Capacity: 3000 lb.
(1350 kg)
When your application calls for that extra reach, the ML14ASX is your answer. This versatile vehicle lifts 3,000 lb. up to 189 in. (15 ft.) with the optional three-stage mast. Intelligently designed ergonomic handle allows operator to perform all functions while still “hands-on” Integral side shifter comes standard.
Features
- Power Steering
- Pantograph wide side shifter
- Two straddle options: ID/OD of 34/42 or 42/50
- Lift height of 189 in. (15 ft.)
- Easy maneuverability in tight spaces–80 in. right angle stack with 36 in. wide load
- Ergonomic operator handle incorporates all vehicle controls
ML20AS POWER DRIVE STRADDLE TRUCK
Power Source: 24 v. AC Electric, Lead-acid Battery
Capacity: 4000 lb.
(1800 kg)
Easy to operate and elegantly designed, the ML20AS effortlessly lifts and moves up to 4,000 lb. to heights of up to 177 in. (14 ft.) thanks to its smooth operating 24 v. AC motor and its thoughtfully engineered hydraulic and drive systems. Its extra wide straddle legs offer greater stability and safety.
Features
- Creep speed handle control
- Vertically-mounted drive motor for greater performance
- Two straddle options: ID/OD of 42 in./50in. and 50 in./58 in.
- Lift height of 126 in. (10 ft.) with telescopic mast; 177 in. (14 ft.) with TriMast
- Ergonomic operator handle incorporates all vehicle controls
