Pneumatic Tire & IC Cushion Counterbalance Vehicles
Performance + Ergonomics Optimized
Balancing the Decision Between Pneumatic & IC Counterbalance Forklifts
Protect your forklift investment from the get-go by choosing the right vehicle for the job. Answer these three questions:
- What is your intended use?
- Is the ground surface smooth, hard-packed, or rocky?
- Where will the forklift be used, indoors or outdoors?
Our experts will evaluate your needs and provide you with a smart selection of counterbalance vehicles to meet your productivity goals. Think of it as a four-step process. 1. Find the right equipment. 2. Choose the tire style that best suits your expected usage. 3. Regularly inspect and maintain the tires to ensure you get the most from your investment. 4. Call Apex.
Our team is there to ensure that your vehicle delivers the safe, effective, long-term results you expect. We’re with you every step of the way.
Counterbalance Forklifts
C15/18/20S GEN2
IC-PNEUMATIC & IC-CUSHION TIRE
C15C/18C/20SC GEN2
IC-PNEUMATIC & IC-CUSHION TIRE
LPG/Dual Fuel/Diesel
2500 / 3000 / 3000 / 3500 / 4000 / 5000 lbs.
1250 / 1500 / 1500 / 1750 / 1815 / 2270 kg
CLARK’S Gen2 C15-series delivers unequaled power and performance combined with the latest in operator safety and ergonomics. These narrow-width models are designed for a variety of applications for warehousing, distribution and manufacturing. Available with either pneumatic and cushion tires.
Applications
Manufacturing, Warehousing, Recycling, Beverage/Bottling & Trucking
Features
- High-performance, Hyundai Theta LPG engine
- Excellent fuel economy, durable with easy start
- Optimum performance of attachment
- Fully adjustable operator compartment
S20/25/30/35
IC-PNEUMATIC
LPG/Dual Fuel/Diesel
4000 / 5000 / 6000 / 7000 lbs..
(2000 / 2500 / 3000 / 3500 kg)
S20/25/30/32C
IC-CUSHION TIRE
LPG/Dual Fuel
4000 / 5000 / 6000 / 6500 lbs.
2000 / 2500 / 3000 / 3200 kg
The CLARK S-Series is the next generation of lift trucks, building on over 100 years of forklift innovation. Available with either pneumatic or cushion tires, the S-Series is SMART, designed with interactive dash with built-in reporting. They’re STRONG, built to perform with lower cost of ownership. The S-Series is also SAFE with innovative safety features including speed limit control and enhanced truck stability.
Applications
Manufacturing, Warehousing, Materials Handling
Features
- Enhanced operator comfort & productivity
- Smart dash with on-board diagnostics
- Powertrain protection monitoring system
- Low cost of ownership

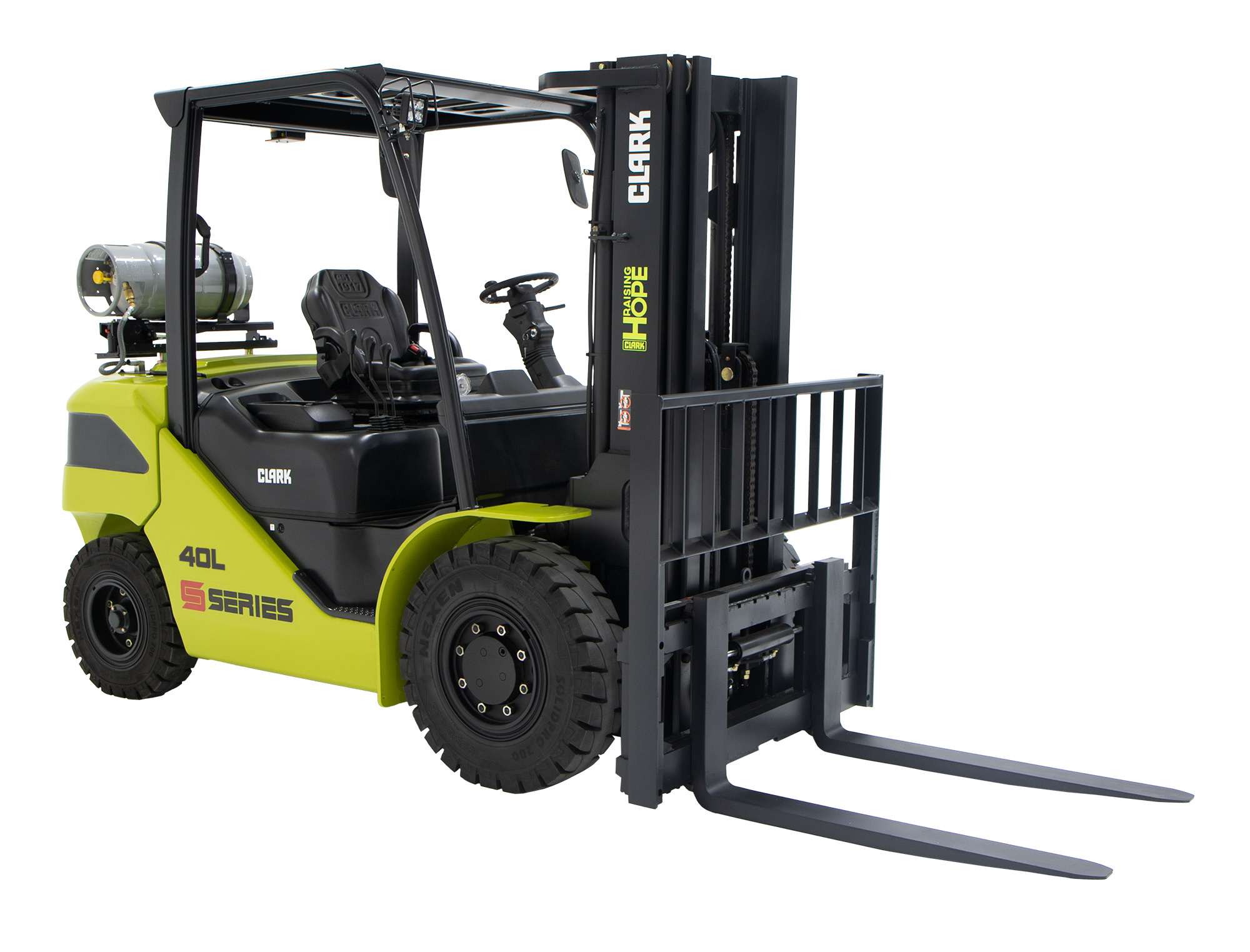

S40/45/50/55/60
IC-PNEUMATIC
LPG/Dual Fuel/Diesel
8,000 / 9,000 / 10,000 / 11,000 / 12,000 lbs
3628 / 4082 / 4535 / 4989 / 5443 kg
Go big and… go to Work! The CLARK S40-60 IC-Pneumatic forklifts are your go-to vehicle for a variety of heavy-lifting applications. Built SMART and SAFE with driver-centric features and technology giving you bigger sightlines, greater stability, and an interactive visual and audible dash. CLARK S40-60 vehicles are also STRONG with a fully-welded heavy gauge body and powerful engine with optimal output in the rpm range where you need it most. Your forklift will maintain capacity and balance even when fully loaded.
Applications
Manufacturing, Warehousing, Building Materials Handling
S40-60 Forklift Advantages
-
- Interactive dash with audible & visual driver warnings
- Enhanced stability with nested I-beam mast
- Expanded sightlines
- Minimal vibration and noise
- Ergonomic & comfortable driver compartment
- Optimized center of gravity

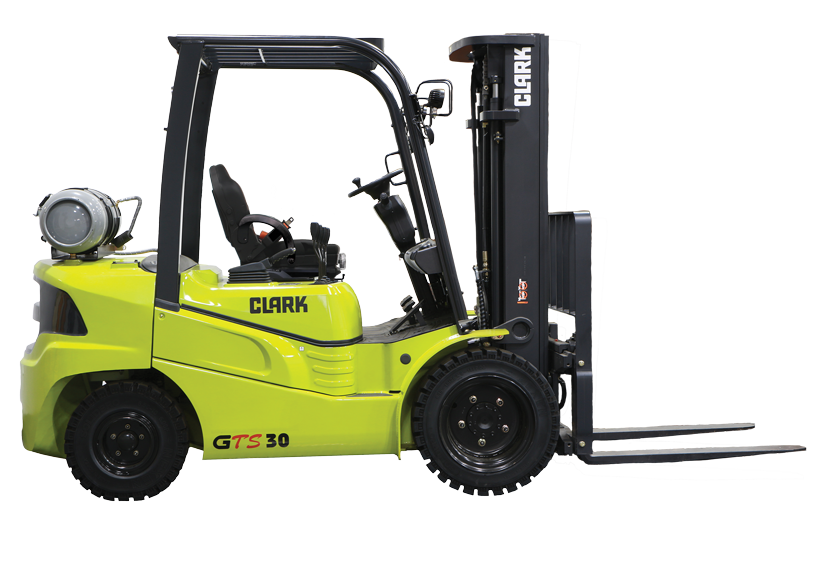

GTS 20/25/30/33
IC-PNEUMATIC
LPG
4000 / 5000 / 6000 / 6600 lbs.
2000 / 2500 / 3000 / 3300 kg
The CLARK GTS series high-quality components like wet disc brakes and split transmission ensure unequaled and reliable performance with lower cost of ownership. These solid construction vehicles get the job done!
Applications
Distribution, Manufacturing & Warehousing of all types
Features
- Single-speed powershift transmission
- Wet disc brakes
- High-capacity cooling system
- EPA compliant LPG fuel system
C40/45/50/55S
IC-PNEUMATIC
LPG/DIESEL
8000 / 9000 / 10,000 / 11,000 / lbs.
4000 / 4500 / 5000 / 5500 / kg
Designed for harsh environments and the toughest tasks, the Gen2 40-Series has an open-core radiator for maximum engine and transmission cooling. This super rugged, yet comfortable vehicle is loaded with features to ensure optimal performance and productivity.
Applications
Manufacturing, Warehousing, Building Materials Handling
Features
- Durable construction & operator comfort
- Full range of lift heights
- High-capacity cooling system & power steering
- EPA compliant

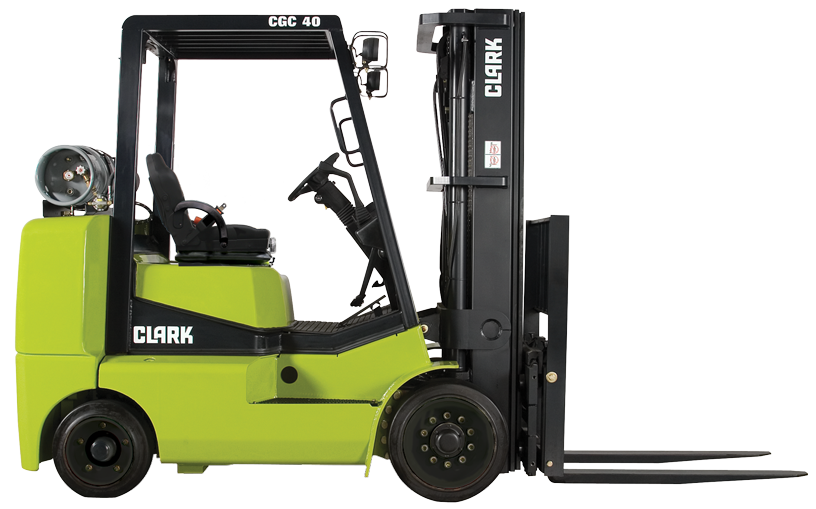

CGC 40/50/55/60/70
IC-CUSHION
LPG
8000 / 10,000 / 12,000 / 13,500 / 15,5000 lbs
4000 / 5000 / 5500 / 6000 / 7000 kgs
Built for tough applications and heavy loads the CGC series is designed to perform with power and built-in operator comfort and safety.
Applications
Manufacturing, Processing, Paper & Mill Processing, Machinery Movers
Features
- Full range of lift heights
- EPA compliant V6 engine
- Power steering
- Fully-adjustable operator compartment

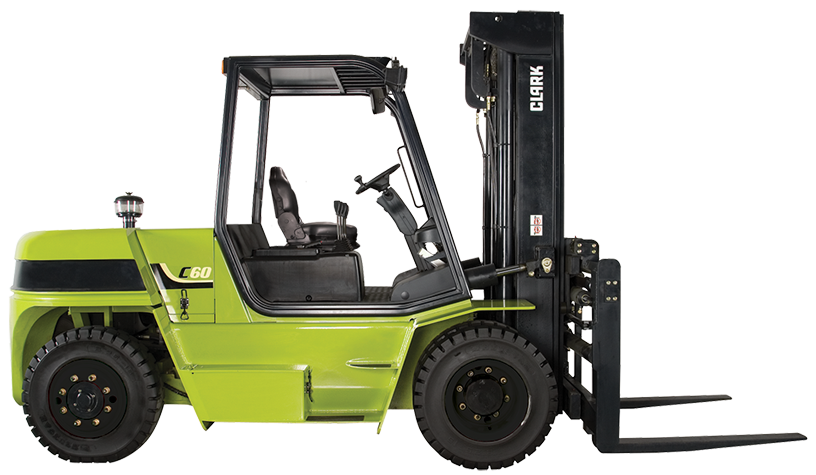

C60/75/80
IC-PNEUMATIC
LPG/DIESEL
13,500 / 15,500 / 16,500 / 18,000 lbs.
6000 / 7000 / 7500 / 8000 kg
This CLARK powerhouse features a combination 100 HP engine, automatic 3-speed transmission, wet disc brakes and rugged chassis delivering outstanding performance and maneuverability. The C60-series comes equipped with a heavy-duty, “built to last” chassis and smart-shift transmission.
Applications
Yard Applications in Heavy Manufacturing & Warehousing, Building Materials Handling
Features
- Durable construction & operator comfort
- 3-speed auto-shift transmission
- High-capacity cooling
- Power steering
Understanding the Difference - Pneumatic vs. Cushion Forklift Tires
Pneumatic tires are the most common tire. You see them on everything from cars to bicycles and forklifts. If your surface is smooth, i.e., concrete, paved, hard-packed stone, or dirt, you’ll get a comfortable ride on a pneumatic tire. However, there are two types of pneumatic tires, and you want to be sure to choose the best one for your application.
Air-filled pneumatic tires are less costly because they are manufactured from reinforced rubber vs. the solid rubber of the solid pneumatic tire. As you can expect, the air-filled has a shorter lifespan than solid, and it can be prone to puncture if used in rocky terrain or around sharp objects. Solid pneumatic tires are the right choice where you need good traction on rough outdoor surfaces and around debris.
Cushion tires, also known as press-on tires, deliver a smooth ride for interior or light-duty outdoor use over smooth, non-abrasive terrain. The solid rubber tire is durable and helps nimble, small lift trucks maneuver in and out of tight spaces.
Talk to the Apex forklift tire experts about the best tires for your forklift needs. Also, ask about non-marking treatment to prevent tires from leaving marks and smudges on your facility’s floor.
See our Fleet Maintenance and Finance & Leasing pages for more ways that Apex can help keep you moving.
